2D Unsteady Heat Equation DEMO code

This notebook demonstrates solving Unsteady 2D Fourier's Heat Equation using PINNs.

import deepflow as df
print("Deepflow is runned on:", df.device) # to change to cpu use df.device = 'cpu'
df.manual_seed(69) # for reproducibility

Deepflow is runned on: cuda

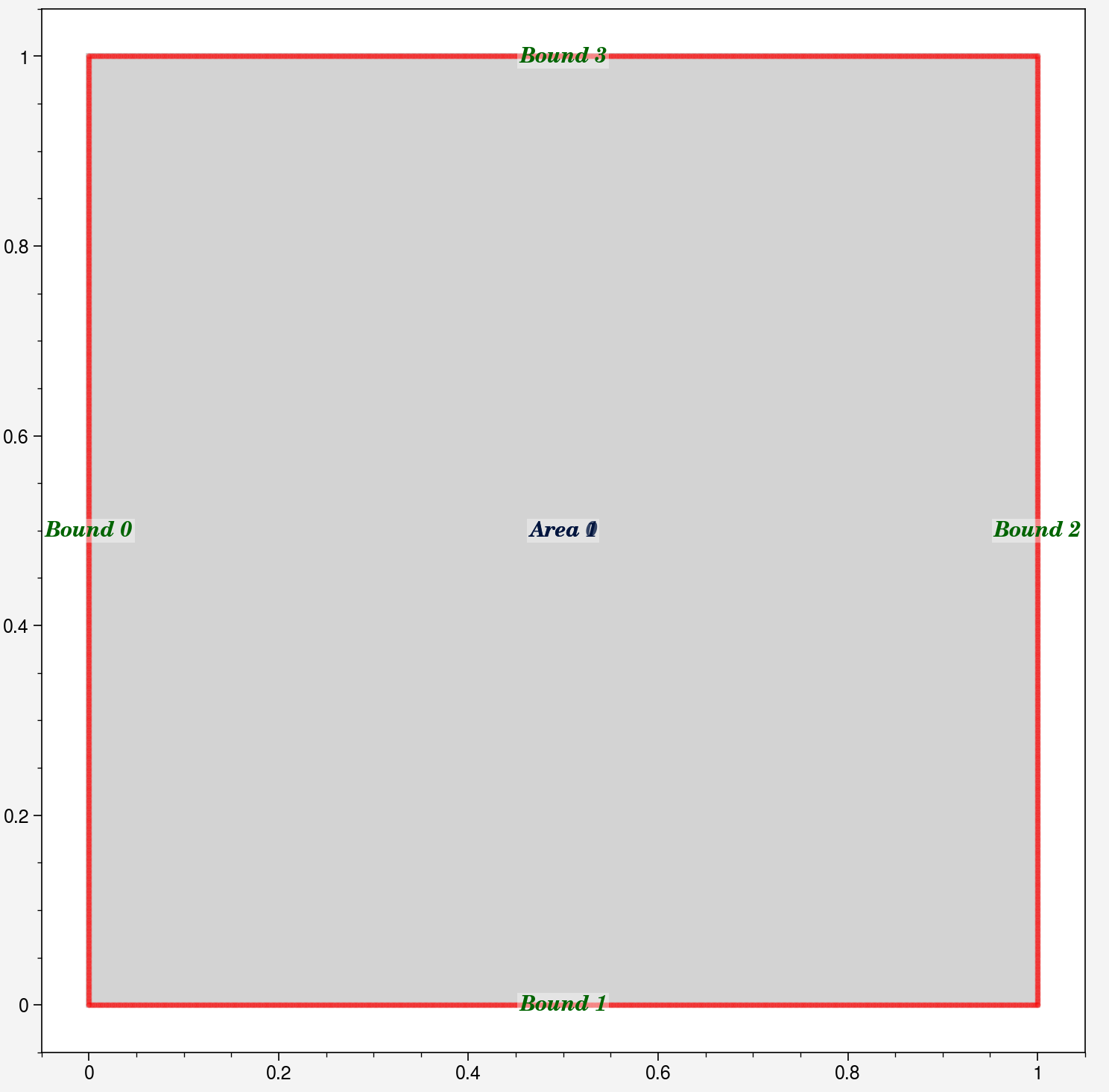

1. Define Geometry Domain

Set up the computational domain

rectangle = df.geometry.rectangle([0, 1], [0, 1])
rectangle1 = df.geometry.rectangle([0, 1], [0, 1])
domain = df.domain(rectangle, rectangle1.area_list)
domain.show_setup()

png

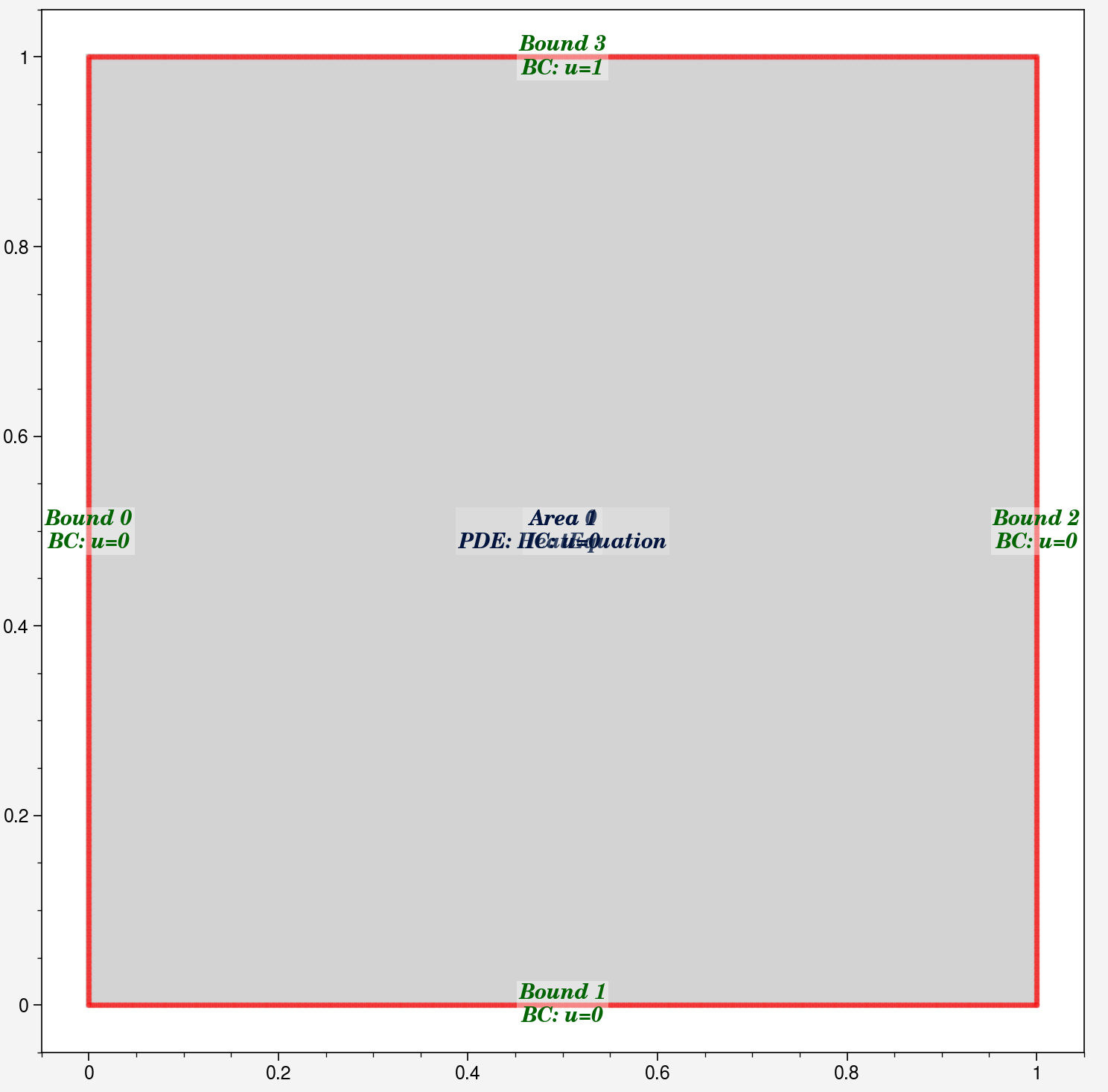

2. Define Physics

Define the Burgers eq (spatial version) apply boundary conditions.

# Define Boundary Conditions
domain.bound_list[0].define_bc({'u': 0})   # Inflow: u=1
domain.bound_list[1].define_bc({'u': 0})   # Inflow: u=1
domain.bound_list[2].define_bc({'u': 0})   # Inflow: u=1
domain.bound_list[3].define_bc({'u': 1})  # Wall: No slip

# Define PDE (Heat Equation) and Initial Condition
domain.area_list[0].define_pde(df.pde.HeatEquation(0.1))
domain.area_list[1].define_ic({'u': 0})

# Define time domain
for g in domain:
    g.define_time(range_t = [0, 1], sampling_scheme='random')

domain.show_setup()

C:\Users\thamm\OneDrive\Documents\1 - Projects\0 - STEM\2 - Numerical Physics\9 - PINNs\deepflow\src\deepflow\physicsinformed.py:122: UserWarning: expo_scaling has not yet defined. False is set as default.
  warnings.warn("expo_scaling has not yet defined. False is set as default.")

png

2. Generate Training Data

Sample initial points for training. After sampling, Deepflow will automatically generate training datasets based on the defined physics.

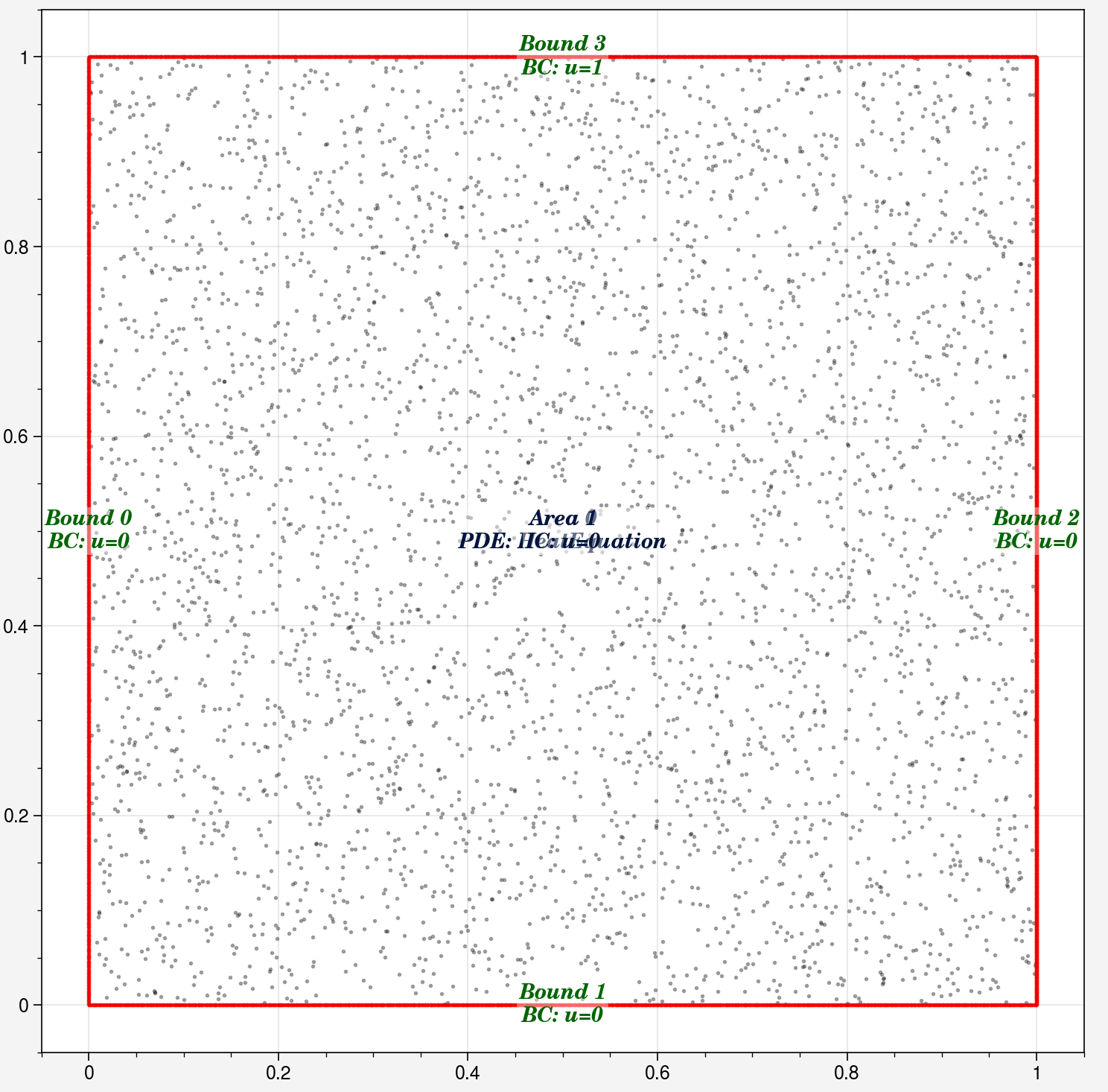

# Sample points: [Left, Bottom, Right, Top], [Interior]
domain.sampling_lhs([1000, 1000, 2000, 1000], [2000, 2000])
domain.show_coordinates(display_physics=True)

png

3. Train the Model

Define the resampling scheme during training. R3 scheme is recommended.

def do_in_adam(epoch, model):
    if epoch % 1000 == 0 and epoch > 0:
        domain.sampling_R3([1000, 1000, 2000, 1000], [2000, 2000])
        print(domain)

def do_in_lbfgs(epoch, model):
    if epoch % 100 == 0 and epoch > 0:
        domain.sampling_R3([1000, 1000, 2000, 1000], [2000, 2000])
        print(domain)

Train the model using Adam optimizer followed by L-BFGS optimizer.

model0 = df.PINN(width=32, length=4, input_vars=['x','y','t'], output_vars=['u'])
model1, model1_best = model0.train_adam(
    calc_loss = df.calc_loss_simple(domain),
    learning_rate=0.004,
    do_between_epochs=do_in_adam,
    epochs=2000)

Epoch: 1, total_loss: 1.07443, bc_loss: 1.07223, pde_loss: 0.00057, ic_loss: 0.00163
Epoch: 200, total_loss: 0.14737, bc_loss: 0.10960, pde_loss: 0.00755, ic_loss: 0.03022
Epoch: 400, total_loss: 0.12092, bc_loss: 0.09239, pde_loss: 0.00619, ic_loss: 0.02235
Epoch: 600, total_loss: 0.10623, bc_loss: 0.08636, pde_loss: 0.00744, ic_loss: 0.01244
Epoch: 800, total_loss: 0.06537, bc_loss: 0.04880, pde_loss: 0.00647, ic_loss: 0.01010
Epoch: 1000, total_loss: 0.05430, bc_loss: 0.03624, pde_loss: 0.00955, ic_loss: 0.00850
number of bound : ['0: 1321', '1: 1590', '2: 2388', '3: 1253']
number of area : ['0: 2550', '1: 2429']
Epoch: 1200, total_loss: 0.06119, bc_loss: 0.04864, pde_loss: 0.00576, ic_loss: 0.00679
Epoch: 1400, total_loss: 0.09882, bc_loss: 0.07925, pde_loss: 0.00781, ic_loss: 0.01176
Epoch: 1600, total_loss: 0.05544, bc_loss: 0.04448, pde_loss: 0.00462, ic_loss: 0.00634
Epoch: 1800, total_loss: 0.05426, bc_loss: 0.03893, pde_loss: 0.00863, ic_loss: 0.00671
Epoch: 2000, total_loss: 0.04004, bc_loss: 0.03020, pde_loss: 0.00445, ic_loss: 0.00539
number of bound : ['0: 1493', '1: 1954', '2: 2733', '3: 1410']
number of area : ['0: 3008', '1: 2623']

model2 = model1_best.train_lbfgs(calc_loss = df.calc_loss_simple(domain), epochs=450, do_between_epochs=do_in_lbfgs, threshold_loss=5e-3)

Epoch: 2000, total_loss: 0.05703, bc_loss: 0.04316, pde_loss: 0.00694, ic_loss: 0.00693
Epoch: 2050, total_loss: 0.01069, bc_loss: 0.00796, pde_loss: 0.00205, ic_loss: 0.00068
Training interrupted by user.

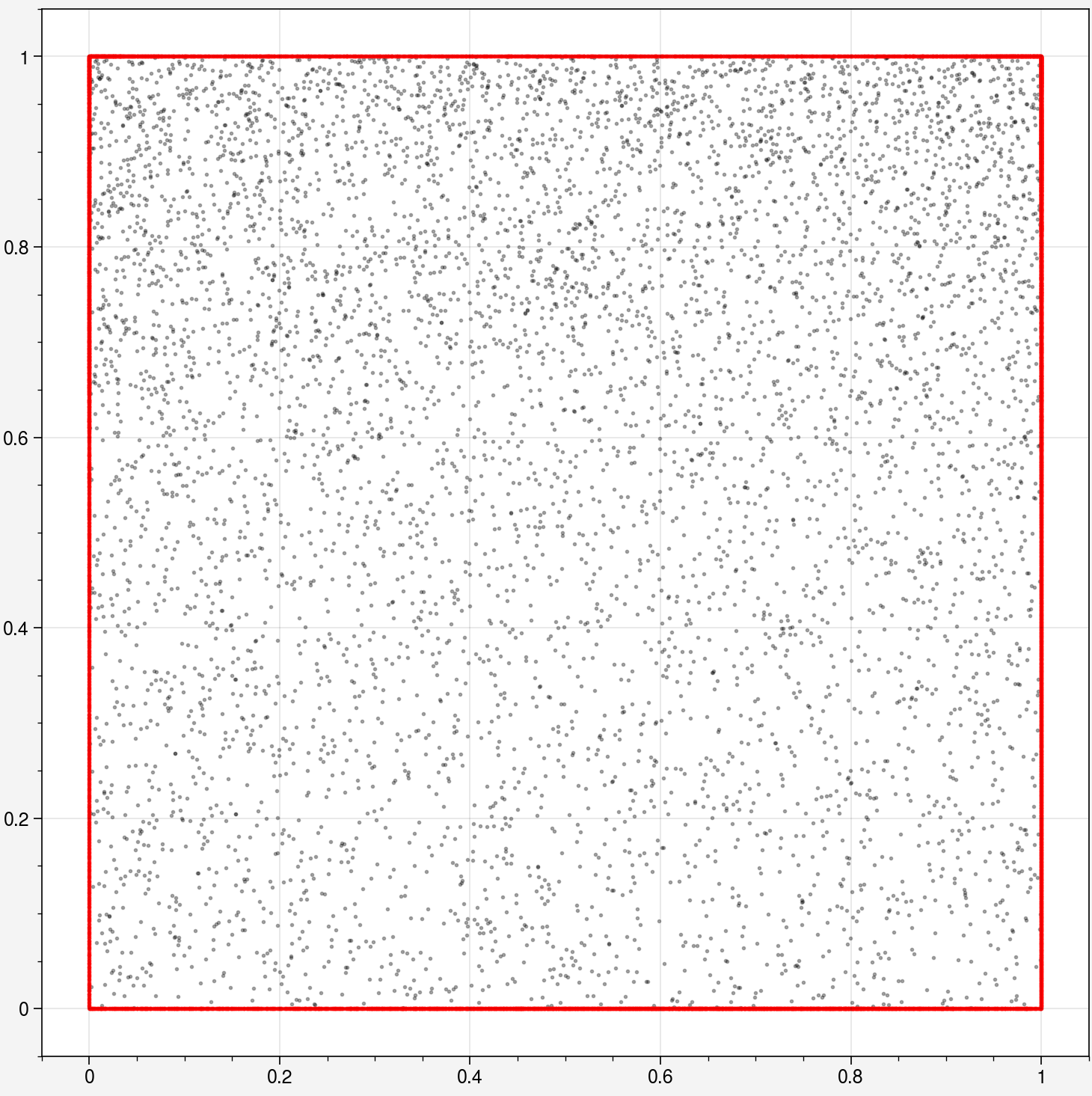

domain.show_coordinates(display_physics=False)

png

4. Visualization

# Evaluate the best model
prediction = domain.area_list[0].evaluate(model2)
prediction.sampling_area([200, 200])
prediction.define_time(0.5)

4.1 Visualize PDE area

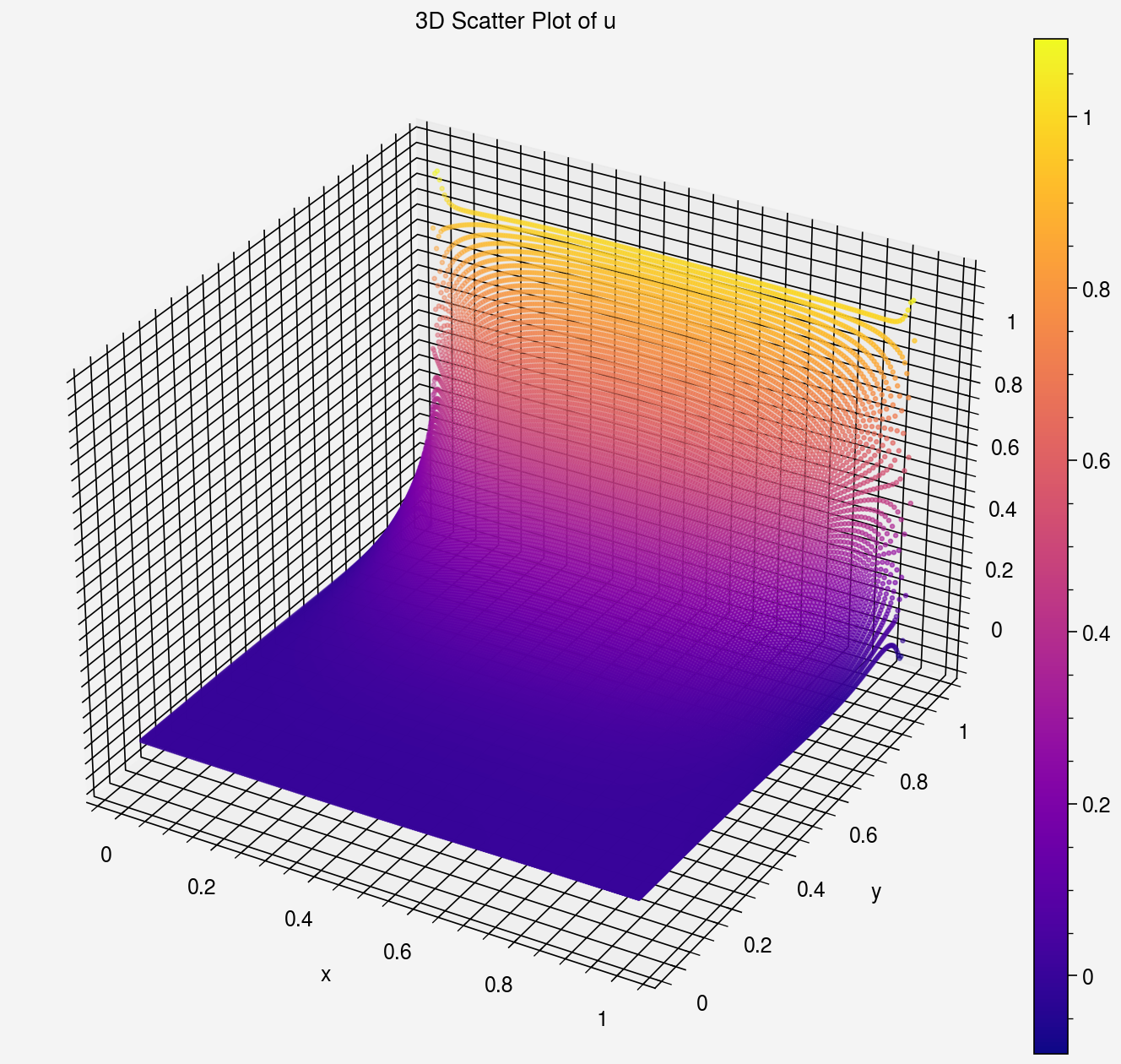

# Plot Temperature Field
_ = prediction.plot('u', color='plasma')
_.savefig('heat_eq_u.png', dpi=200)

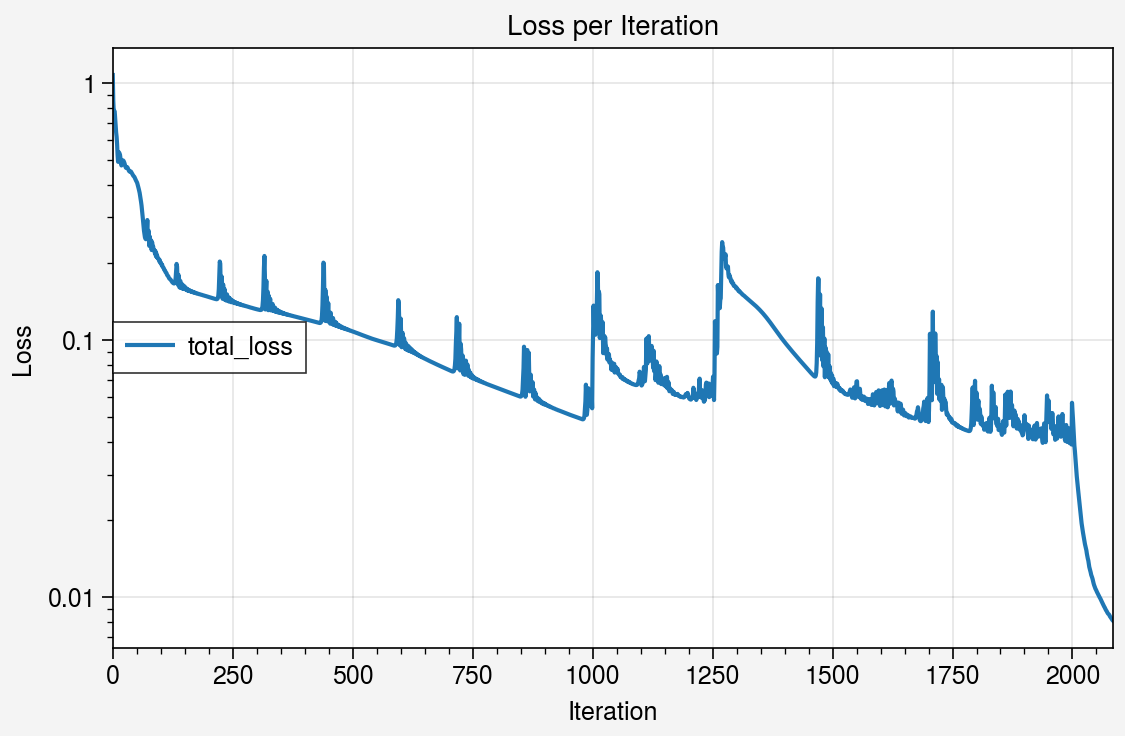

# Plot Training Loss
_ =prediction.plot_loss_curve(log_scale=True, keys=['total_loss'])

C:\Users\thamm\AppData\Local\Temp\ipykernel_15656\1618917411.py:3: UltraPlotWarning: Tick label sharing not implemented for <class 'ultraplot.axes.three.ThreeAxes'> subplots.
  _.savefig('heat_eq_u.png', dpi=200)
C:\Users\thamm\AppData\Local\Packages\PythonSoftwareFoundation.Python.3.11_qbz5n2kfra8p0\LocalCache\local-packages\Python311\site-packages\IPython\core\events.py:82: UltraPlotWarning: Tick label sharing not implemented for <class 'ultraplot.axes.three.ThreeAxes'> subplots.
  func(*args, **kwargs)
C:\Users\thamm\AppData\Local\Packages\PythonSoftwareFoundation.Python.3.11_qbz5n2kfra8p0\LocalCache\local-packages\Python311\site-packages\IPython\core\pylabtools.py:170: UltraPlotWarning: Tick label sharing not implemented for <class 'ultraplot.axes.three.ThreeAxes'> subplots.
  fig.canvas.print_figure(bytes_io, **kw)

png

png

4.2 Animate the solution over time

prediction.sampling_area([160, 160])
prediction.plot_animate('u', range_t = [0.02, 1.02], dt = 0.02, frame_interval=100, cmap='plasma', plot_type='scatter', s=1.7).save('heat_equation.mp4', dpi = 200)

animation
