DeepFlow: Physics-Informed Neural Networks for Fluid Dynamics

PyPI version PyPI - Downloads License: MIT Python 3.8+

DeepFlow Logo

DeepFlow is a user-friendly framework for solving PDEs, with a focus on fluid dynamics including the Navier–Stokes equations, using Physics-Informed Neural Networks (PINNs). It provides a CFD-solver-style workflow that makes PINN-based simulations accessible and straightforward.

Table of Contents

Key Features

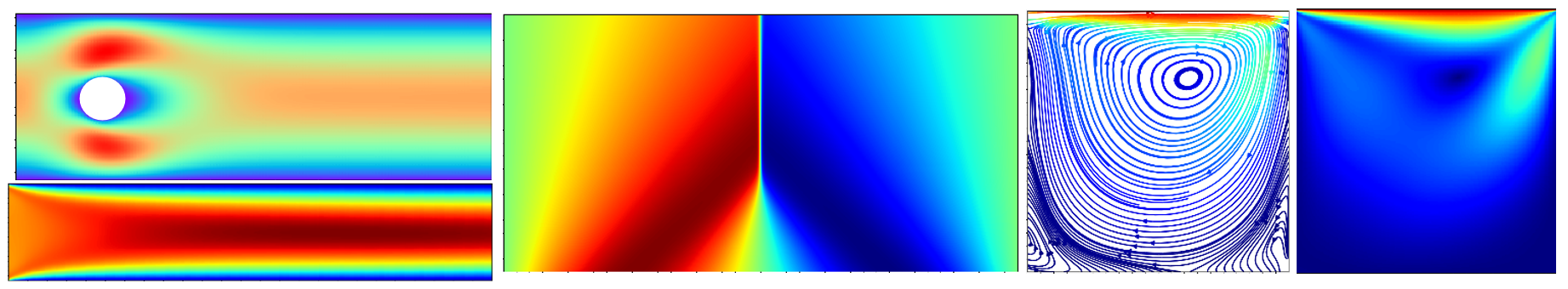

promo

  • ⟁ Physics-Attached Geometry: AUTO GENERATE TRAINING DATA by explicitly attach physics and neural network to geometries.
  • 🔧 CFD-Solver Style: Straightforward workflow similar to CFD software.
  • 📊 Built-in Visualization: Tools to evaluate and plot results.
  • 🚀 GPU Acceleration: Enable GPU for faster training.
  • Flexible Domain Definition: Easily define complex 2D geometries.

Current Implementations

  • Supported problems: solving forward partial differential equations (PDEs)
    • transient & steady 2D imcompressible Navier-Stokes equations, 2D Fourier Heat equation, Burgers' equation
  • Sampling methods: Uniform, Random, Latin Hypercube Sampling, RAR-G [0], R3 [1]
  • 2D Geometries: Custom functions, Rectangle, Circle, Polygon, and combinations & subtractions.
  • Hard Boundary Conditions: Automatic Hard BC w.r.t. to geometry.
  • Neural Network Architectures: Fully connected feedforward networks (FNN).
  • Optimizers: Adam, L-BFGS
  • Backend: PyTorch

Installation

You can install DeepFlow via pip:

pip install deepflow

For development or to build from source:

git clone https://github.com/YoYo-XYZ/deepflow.git
cd deepflow
pip install -e .

Requirements

  • Python >= 3.8
  • PyTorch >= 1.7.0
  • NumPy >= 1.19.0
  • Matplotlib >= 3.3.0
  • SymPy >= 1.5.0
  • SciPy >= 1.5.0
  • Ultrplot >= 1.0.0

Quick Start

This example demonstrates how to simulate Steady channel flow under 20 lines of code! We recommend using a Python notebook (.ipynb) for interactive experience.

1. Define the Geometry and Physics

import deepflow as df

# Define the area and bounds
rectangle = df.geometry.rectangle([0, 5], [0, 1])
domain = df.domain(rectangle)

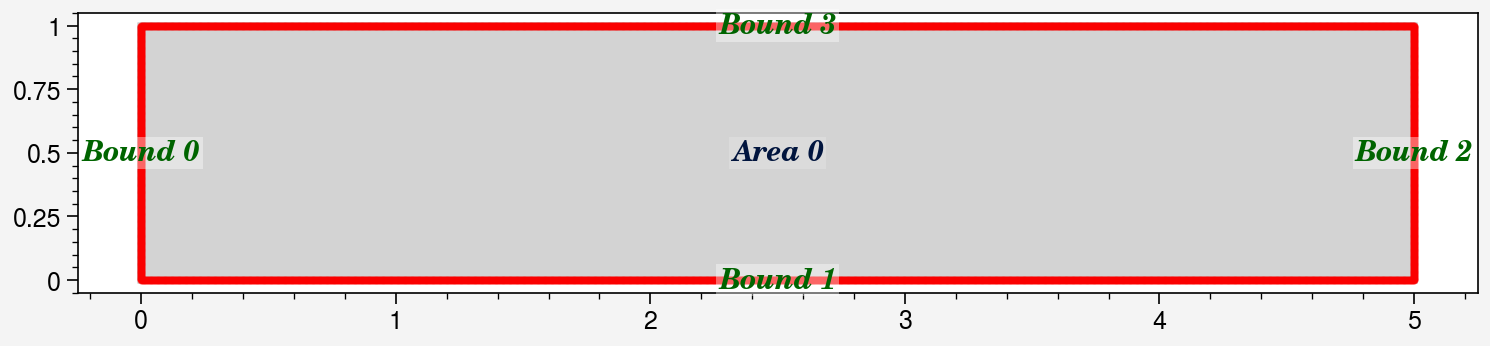

domain.show_setup() # Display the domain setup
alt text
# Define Boundary Conditions
domain.bound_list[0].define_bc({'u': 1, 'v': 0})  # Inflow: u=1
domain.bound_list[1].define_bc({'u': 0, 'v': 0})  # Wall: No slip
domain.bound_list[2].define_bc({'p': 0})          # Outflow: p=0
domain.bound_list[3].define_bc({'u': 0, 'v': 0})  # Wall: No slip

# Define PDE (Navier-Stokes)
domain.area_list[0].define_pde(df.pde.NavierStokes(U=0.0001, L=1, mu=0.001, rho=1000))

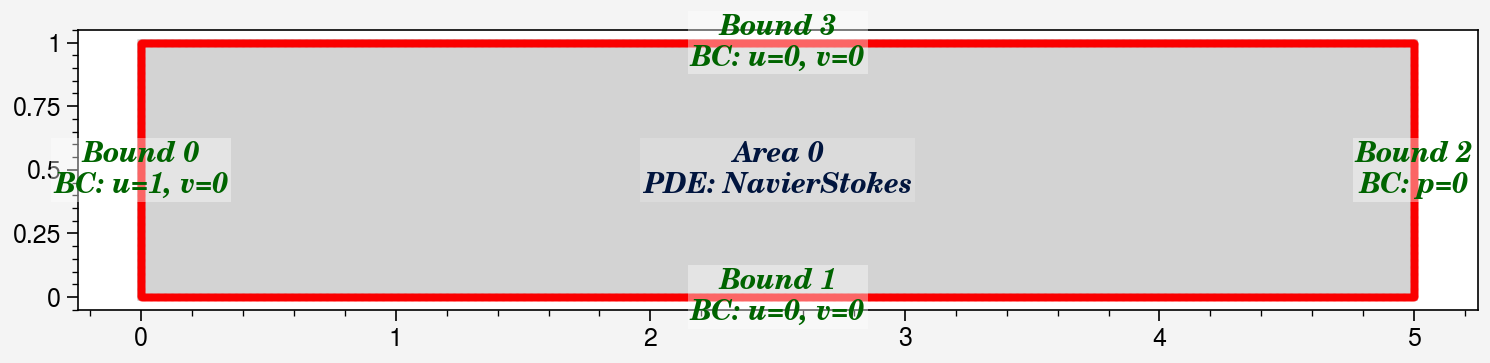

domain.show_setup() # Display the domain setup
alt text

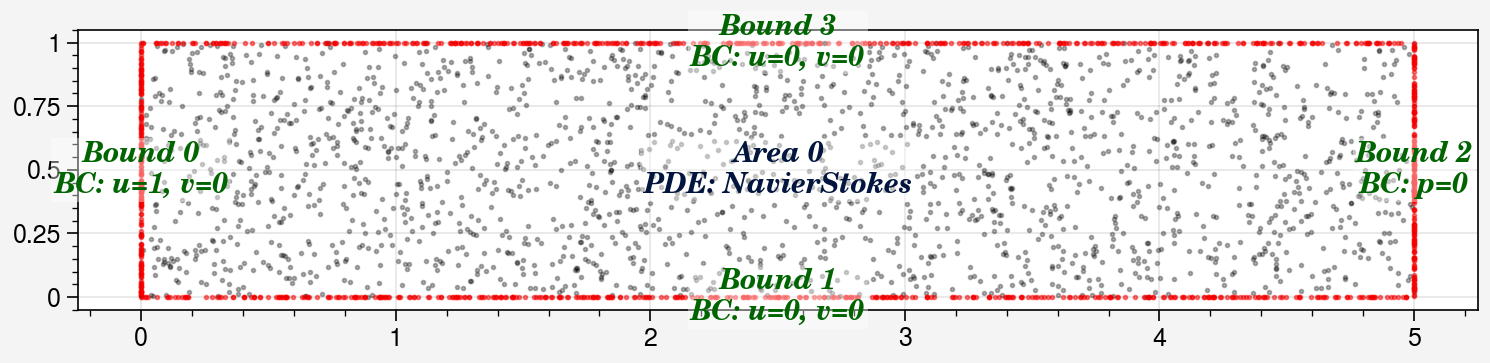

# Sample points: [Left, Bottom, Right, Top], [Interior]
domain.sampling_random([200, 400, 200, 400], [5000])
domain.show_coordinates(display_physics=True)
alt text

2. Create and Train the model

# Initialize the PINN model
model0 = df.PINN(width=40, length=4)

# Train the model using Adam Optimizer
model1 = model0.train_adam(
    calc_loss=df.calc_loss_simple(domain),
    learning_rate=0.001,
    epochs=2000,)

3. Visualize Results

# Evaluate the best model
prediction = domain.area_list[0].evaluate(model1_best)
prediction.sampling_area([500, 100])

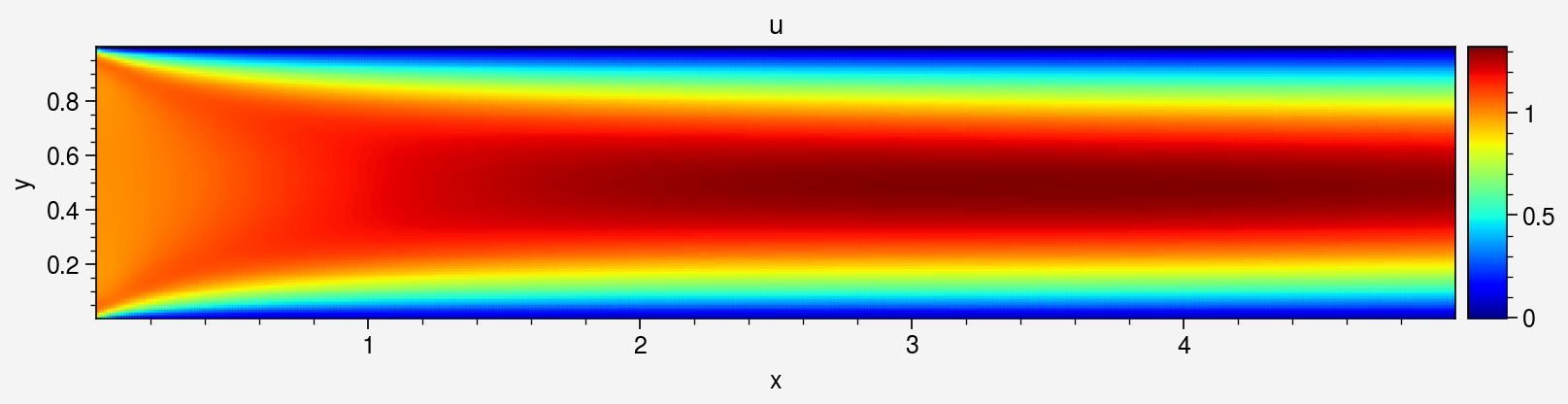

# Plot Velocity Field
_ = prediction.plot_color('u', cmap='jet')

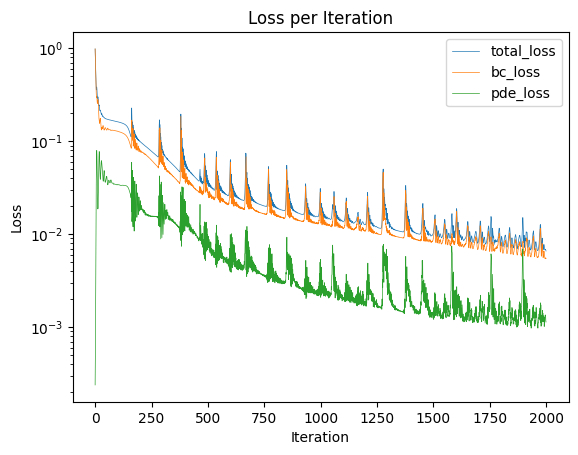

# Plot Training Loss
_ =prediction.plot_loss_curve()
alt text alt text

Examples

Explore the examples directory for real use cases, including

Steady-state: - Steady flow around a cylinder - Lid-driven cavity flow - Backward-facing step flow - Burgers' Equation

Time-dependent: - Transient channel flow - Fourier Heat Equation

Contributing

Feel free to submit a Pull Request. For major changes, open an issue first to discuss the proposed changes.

DeepFlow Milestones

  1. Define custom PDE
  2. Inverse problems PDE
  3. 3D Geometries
  4. More sampling methods
  5. More neural network architectures (e.g., CNN, RNN)

License

This project is licensed under the MIT License - see the LICENSE file for details.
