1D Burgers Equation DEMO code

This notebook demonstrates solving 1D Burgers Equation (spatial xy version) using PINNs.

import deepflow as df
print("Deepflow is runned on:", df.device) # to change to cpu use df.device = 'cpu'
df.manual_seed(69) # for reproducibility

Deepflow is runned on: cuda

1. Define Geometry Domain

Set up the computational domain

area = df.geometry.rectangle([-1, 1], [0, 1])
line_ic = df.geometry.line_horizontal(y=0, range_x=[-1,1])
line_bc1 = df.geometry.line_vertical(x=-1, range_y=[0,1])
line_bc2 = df.geometry.line_vertical(x=1, range_y=[0,1])
domain = df.domain(area.area_list, line_ic, line_bc1, line_bc2)

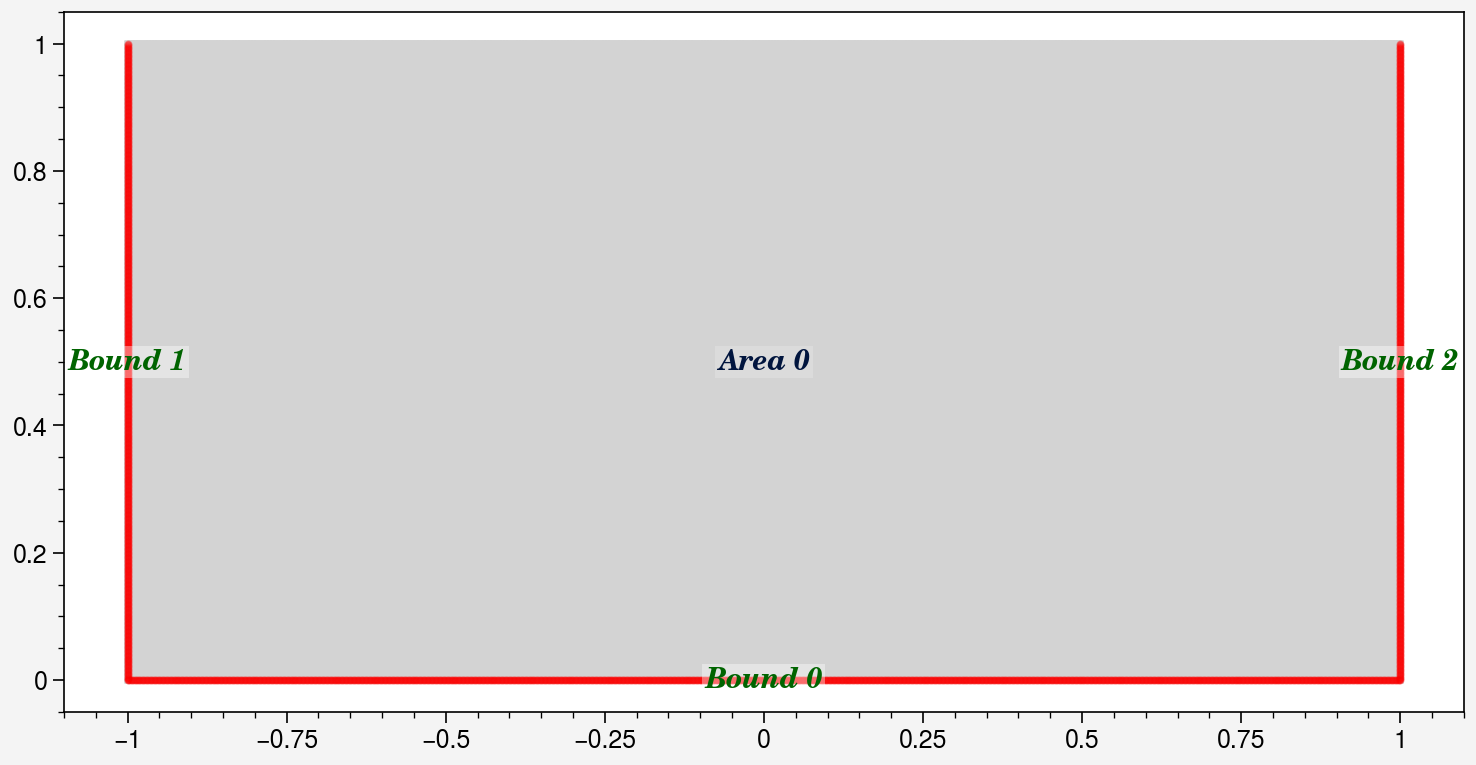

domain.show_setup()

png

2. Define Physics

Define the Burgers eq (spatial version) apply boundary conditions.

# Define PDE
from torch import sin, pi
domain.area_list[0].define_pde(df.pde.BurgersEquation1D(nu=0.01/pi))
domain.bound_list[0].define_bc({'u':['x', lambda x: -sin(pi * x)]})
domain.bound_list[1].define_bc({'u': 0})
domain.bound_list[2].define_bc({'u': 0})

2. Generate Training Data

Sample initial points for training. After sampling, Deepflow will automatically generate training datasets based on the defined physics.

# Sample points: [Left, Bottom, Right, Top], [Interior]
domain.sampling_lhs([2000, 1000, 1000], [4000])

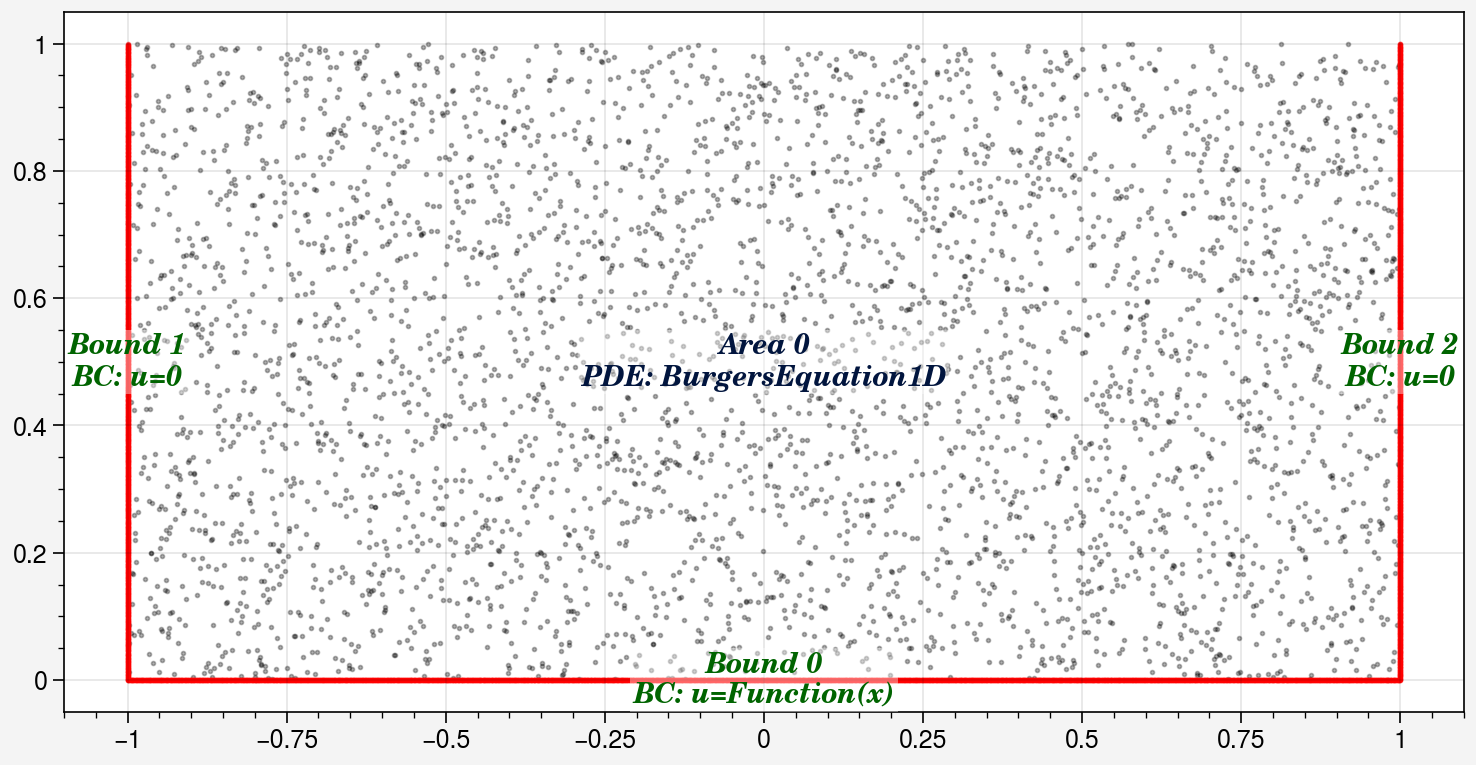

domain.show_coordinates(display_physics=True)

png

3. Train the Model

Define the resampling scheme during training. R3 scheme is recommended.

def do_in_adam(epoch, model):
    if epoch % 500 == 0 and epoch > 0:
        domain.sampling_R3([2000, 1000, 1000], [4000])
        print(domain)

def do_in_lbfgs(epoch, model):
    if epoch % 100 == 0 and epoch > 0:
        domain.sampling_R3([2000, 1000, 1000], [4000])
        print(domain)

Train the model using Adam optimizer followed by L-BFGS optimizer.

model0 = df.PINN(input_vars=['x', 'y'], output_vars=['u'], width=16, length=4)

model1, model1_best = model0.train_adam(
    calc_loss = df.calc_loss_simple(domain),
    learning_rate=0.015,
    epochs=4000,
    do_between_epochs=do_in_adam)

Epoch: 1, total_loss: 0.63708, bc_loss: 0.63691, pde_loss: 0.00018
Epoch: 200, total_loss: 0.10178, bc_loss: 0.05901, pde_loss: 0.04277
Epoch: 400, total_loss: 0.07294, bc_loss: 0.04452, pde_loss: 0.02842
number of bound : ['0: 3065', '1: 1693', '2: 1482']
number of area : ['0: 5407']
Epoch: 600, total_loss: 0.10885, bc_loss: 0.07805, pde_loss: 0.03080
Epoch: 800, total_loss: 0.01511, bc_loss: 0.00641, pde_loss: 0.00870
Epoch: 1000, total_loss: 0.01650, bc_loss: 0.00472, pde_loss: 0.01178
number of bound : ['0: 3800', '1: 2198', '2: 1813']
number of area : ['0: 6625']
Epoch: 1200, total_loss: 0.01325, bc_loss: 0.00356, pde_loss: 0.00969
Epoch: 1400, total_loss: 0.00802, bc_loss: 0.00367, pde_loss: 0.00435
number of bound : ['0: 4617', '1: 2747', '2: 2254']
number of area : ['0: 7925']
Epoch: 1600, total_loss: 0.00648, bc_loss: 0.00290, pde_loss: 0.00358
Epoch: 1800, total_loss: 0.00302, bc_loss: 0.00102, pde_loss: 0.00201
Epoch: 2000, total_loss: 0.00735, bc_loss: 0.00360, pde_loss: 0.00375
number of bound : ['0: 5493', '1: 3284', '2: 2527']
number of area : ['0: 8984']
Epoch: 2200, total_loss: 0.00176, bc_loss: 0.00045, pde_loss: 0.00131
Epoch: 2400, total_loss: 0.00930, bc_loss: 0.00278, pde_loss: 0.00652
number of bound : ['0: 6255', '1: 3747', '2: 2913']
number of area : ['0: 9964']
Epoch: 2600, total_loss: 0.02079, bc_loss: 0.00154, pde_loss: 0.01925
Epoch: 2800, total_loss: 0.00742, bc_loss: 0.00078, pde_loss: 0.00664
Epoch: 3000, total_loss: 0.00273, bc_loss: 0.00114, pde_loss: 0.00159
number of bound : ['0: 6923', '1: 4220', '2: 3455']
number of area : ['0: 10893']
Epoch: 3200, total_loss: 0.00098, bc_loss: 0.00024, pde_loss: 0.00074
Epoch: 3400, total_loss: 0.00073, bc_loss: 0.00017, pde_loss: 0.00056
number of bound : ['0: 7651', '1: 4733', '2: 3835']
number of area : ['0: 11927']
Epoch: 3600, total_loss: 0.01580, bc_loss: 0.00201, pde_loss: 0.01380
Epoch: 3800, total_loss: 0.00503, bc_loss: 0.00171, pde_loss: 0.00332
Epoch: 4000, total_loss: 0.04200, bc_loss: 0.01015, pde_loss: 0.03185
number of bound : ['0: 8525', '1: 5214', '2: 4219']
number of area : ['0: 12743']

model2 = model1_best.train_lbfgs(calc_loss = df.calc_loss_simple(domain), epochs=500, do_between_epochs=do_in_lbfgs)

Epoch: 3945, total_loss: 0.00049, bc_loss: 0.00009, pde_loss: 0.00041
Epoch: 3995, total_loss: 0.00002, bc_loss: 0.00000, pde_loss: 0.00002
Training interrupted by user.

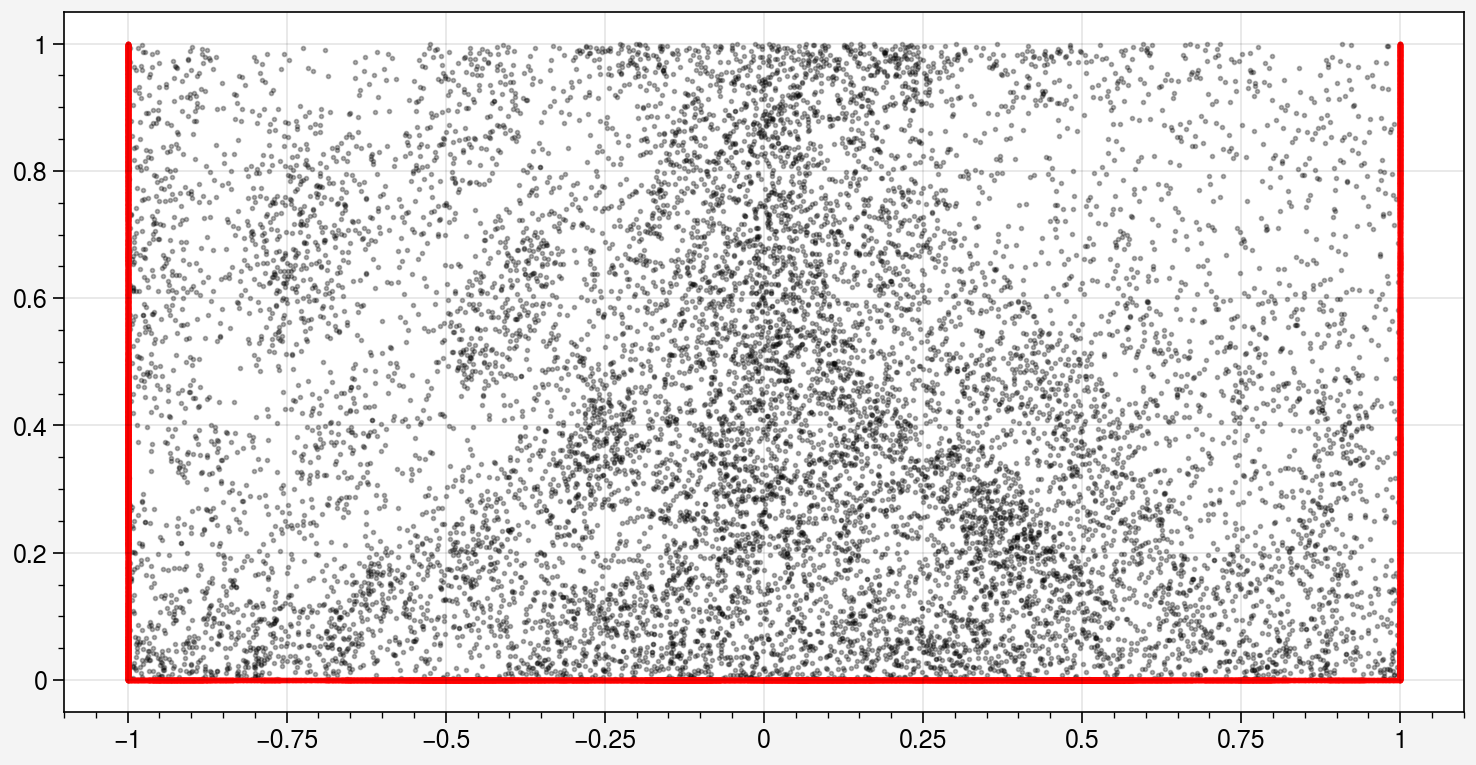

domain.show_coordinates(display_physics=False)

png

4. Visualization

# Evaluate the best model
prediction = domain.area_list[0].evaluate(model2)
# Sampling uniform points
prediction.sampling_area([500, 250])

4.1 Visualize PDE area

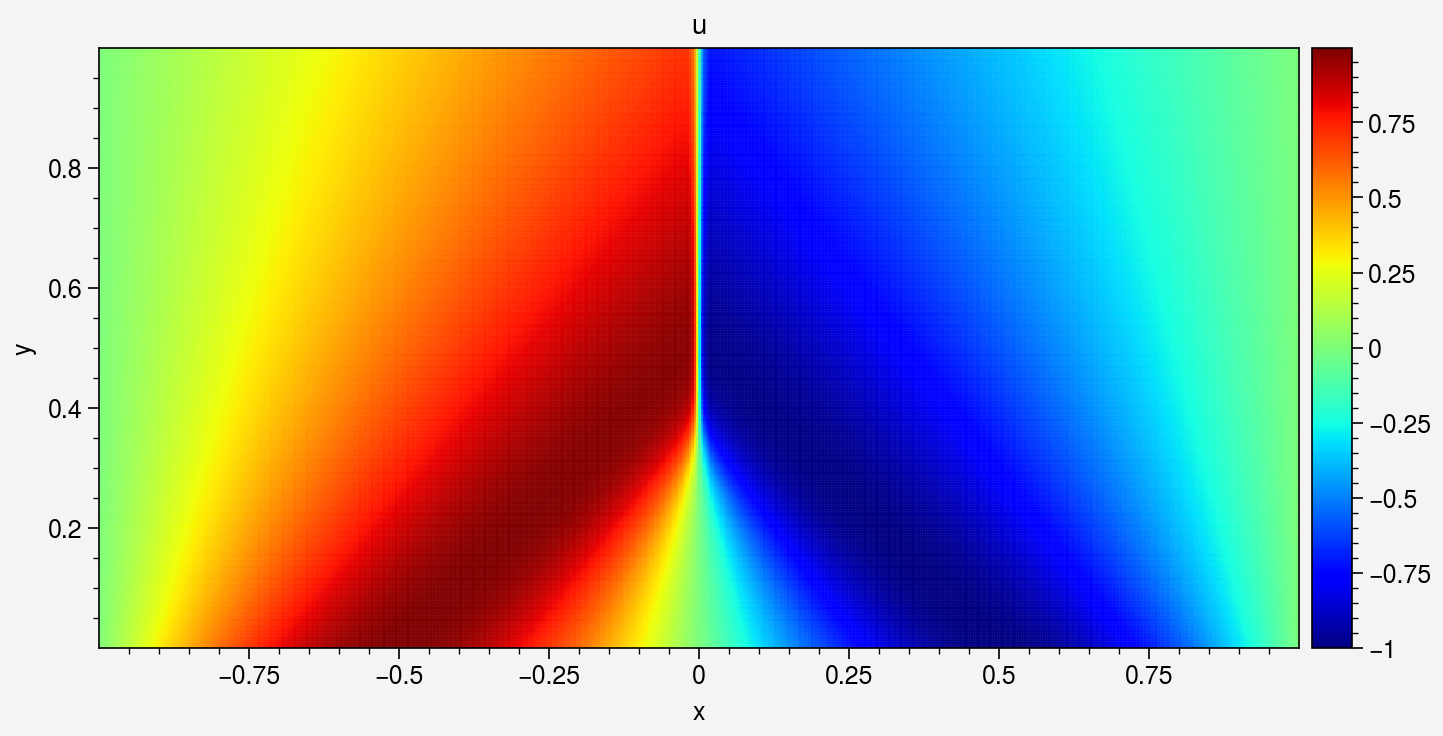

# Plot Velocity Field
prediction.plot_color('u', cmap = 'jet', s=0.3).savefig('u_field.png')

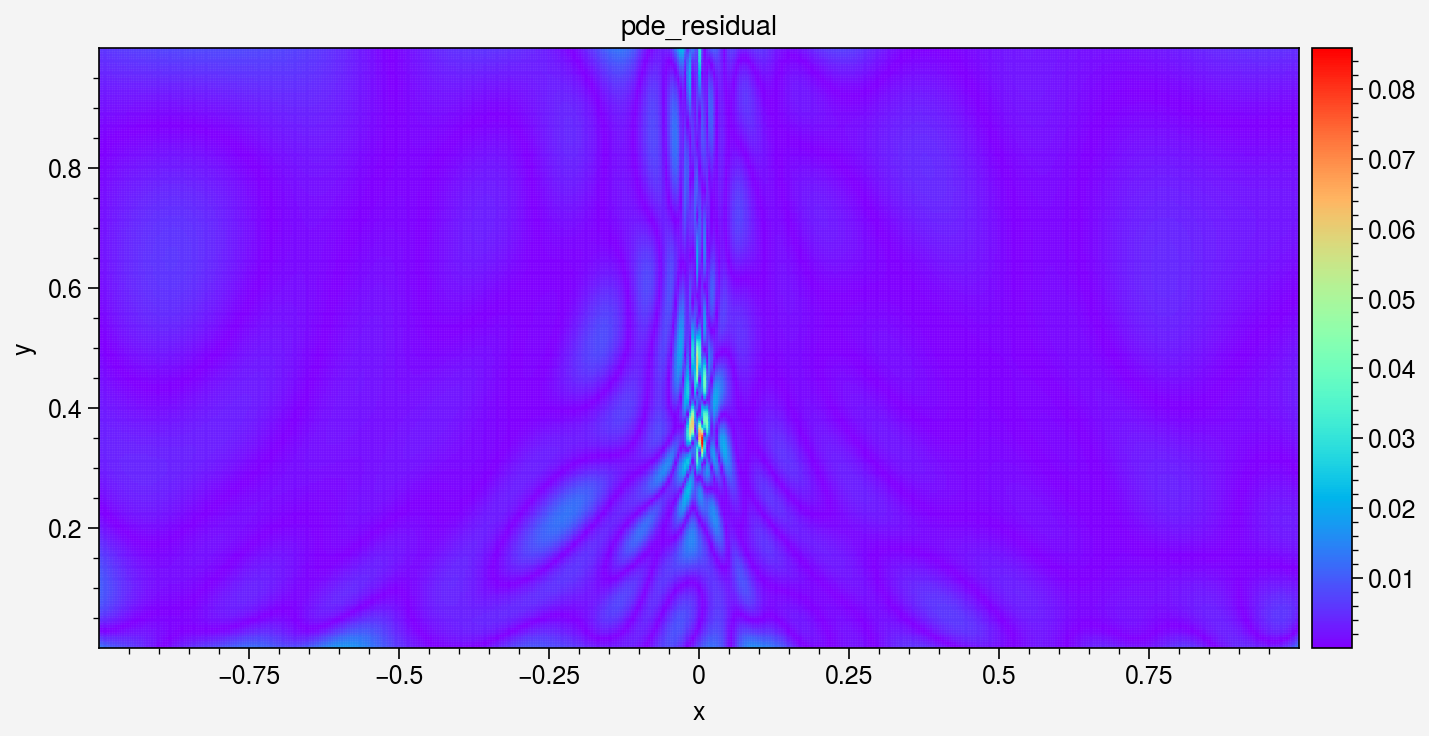

_ = prediction.plot_color('pde_residual', cmap = 'rainbow', s=0.3)

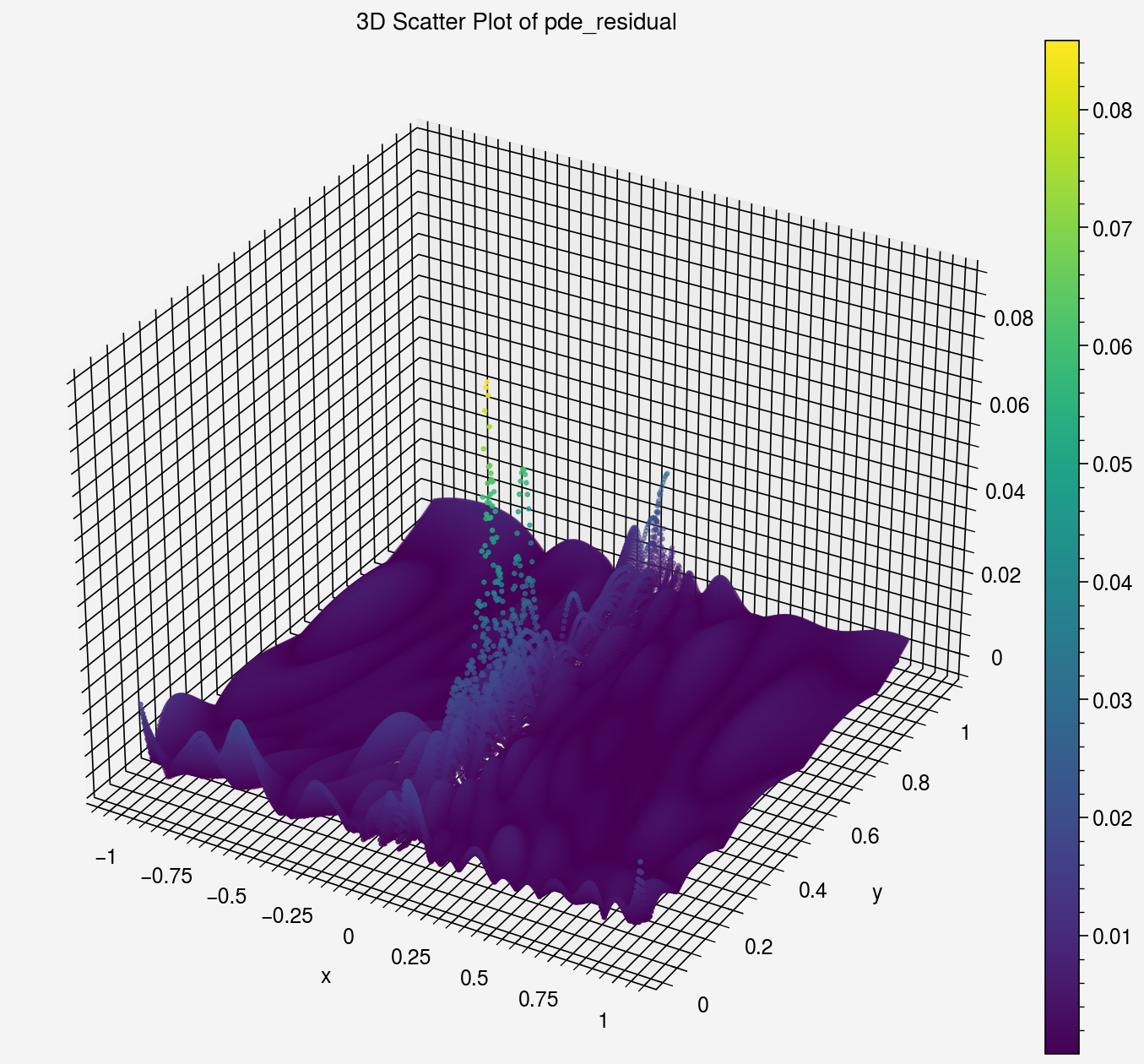

_ = prediction.plot('pde_residual')

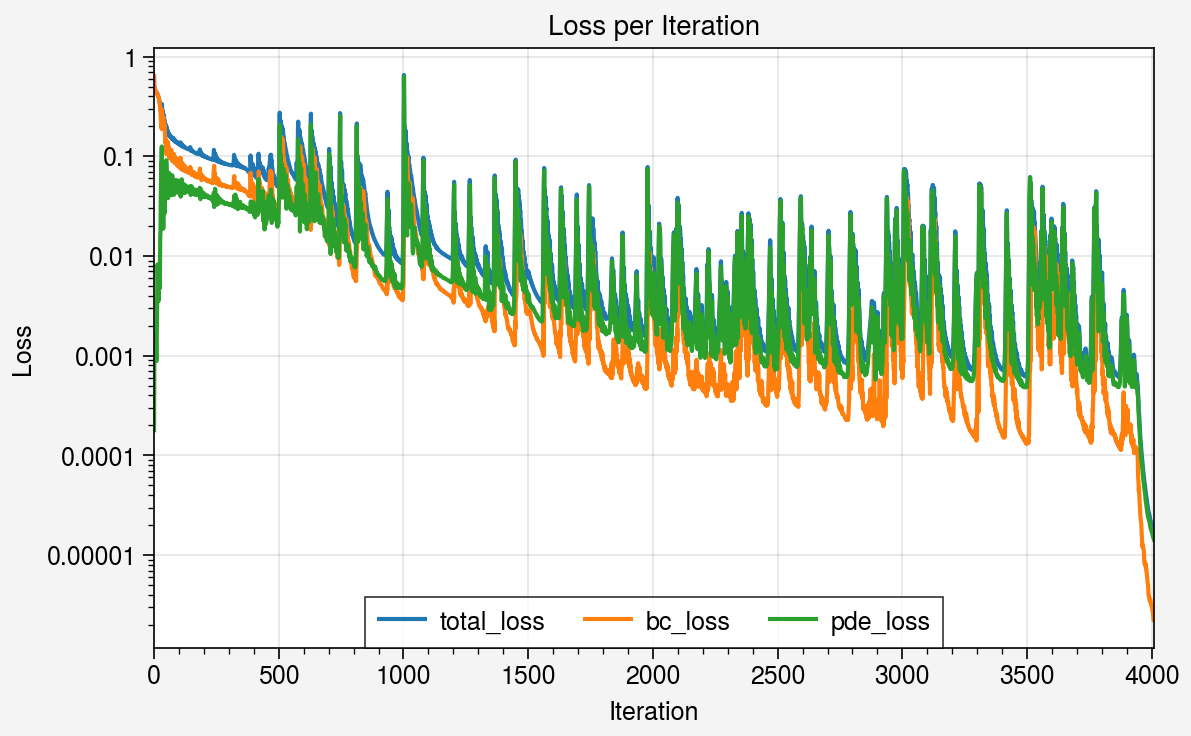

_ = prediction.plot_loss_curve(log_scale=True)

C:\Users\thamm\AppData\Local\Packages\PythonSoftwareFoundation.Python.3.11_qbz5n2kfra8p0\LocalCache\local-packages\Python311\site-packages\IPython\core\events.py:82: UltraPlotWarning: Tick label sharing not implemented for <class 'ultraplot.axes.three.ThreeAxes'> subplots.
  func(*args, **kwargs)

png

png

C:\Users\thamm\AppData\Local\Packages\PythonSoftwareFoundation.Python.3.11_qbz5n2kfra8p0\LocalCache\local-packages\Python311\site-packages\IPython\core\pylabtools.py:170: UltraPlotWarning: Tick label sharing not implemented for <class 'ultraplot.axes.three.ThreeAxes'> subplots.
  fig.canvas.print_figure(bytes_io, **kw)

png

png

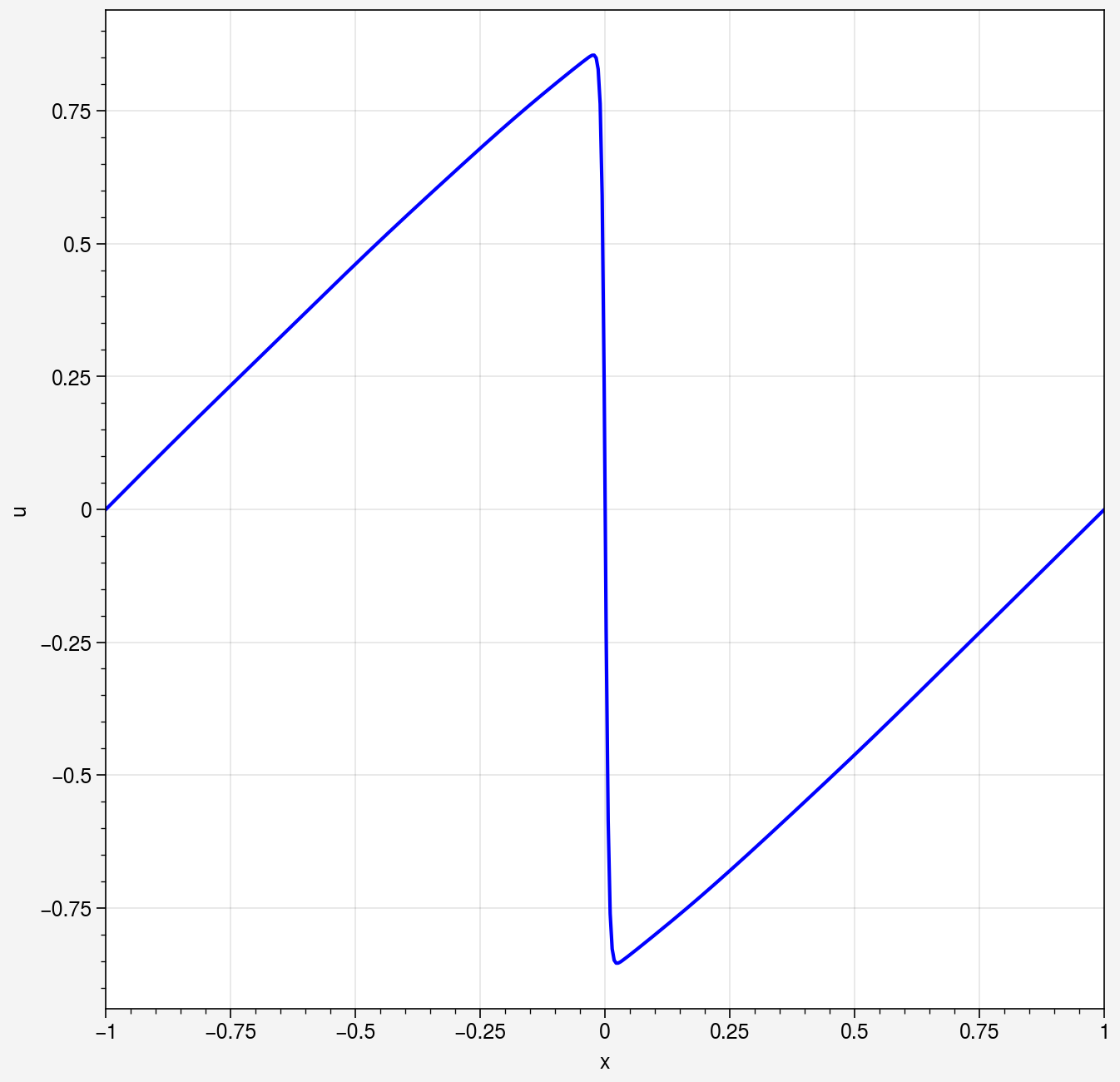

4.2 Visualize u at y = 0.75

line = df.geometry.line_horizontal(y=0.75, range_x=[-1, 1])
prediction = line.evaluate(model2)
prediction.sampling_line(500)
_ = prediction.plot(y_axis = 'u')

png
